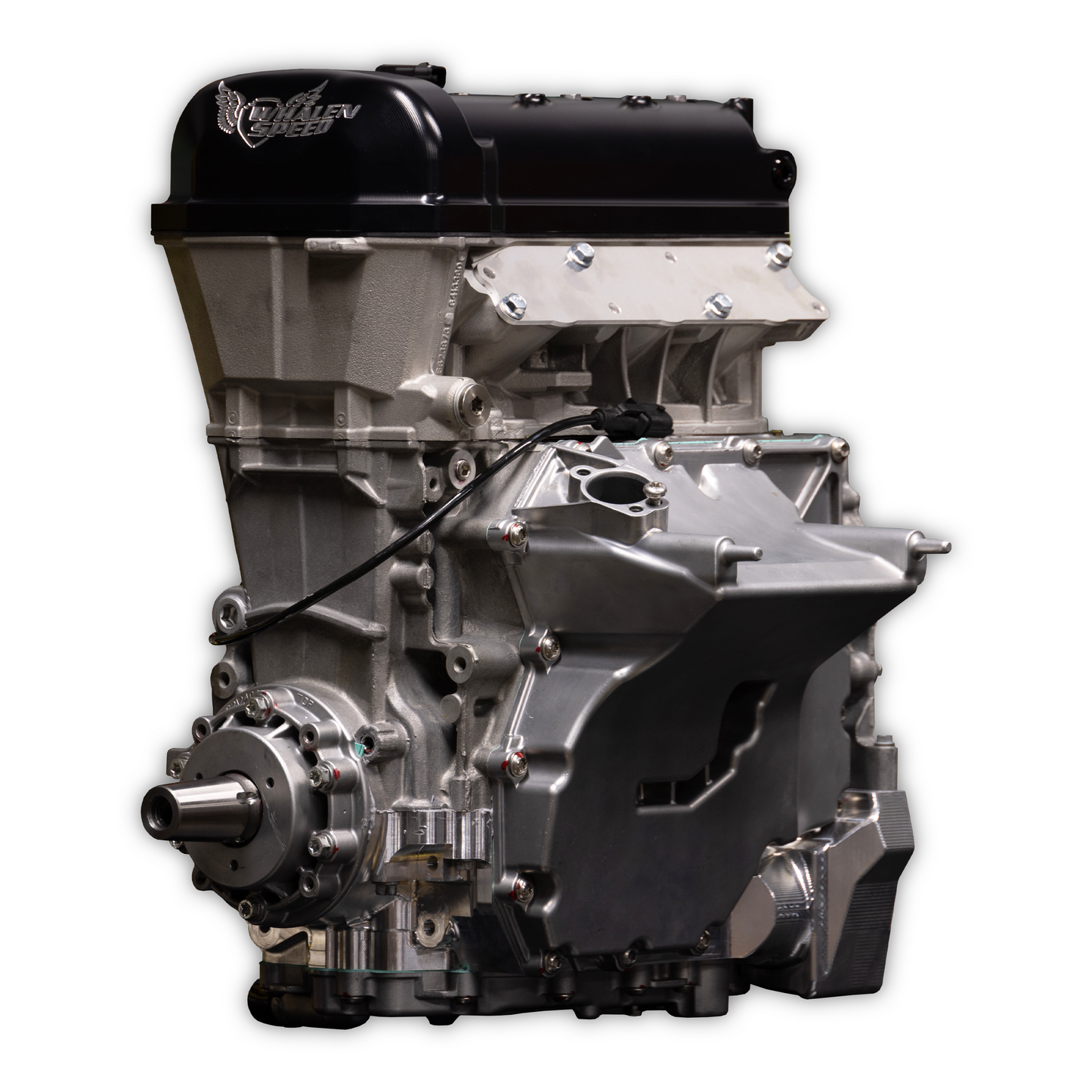

WSRD V4 Billet Girdle Long Block Assembly Engine Package | Can-Am X3 & Ski-Doo (Rated to 650HP)

The complete Long Block Assembly solutions! All Long Block Assemblies are built around a customer supplied engine core. The processes included for a complete assembly are built from oil sump to valve cover and stator cover as drop in, ready to install long blocks.

What's Included?
WSRD V4 Billet Girdle Closed Deck Short Block Package (WSRD Ultimate Piston & Connecting Rod - Balanced Rotating Assembly)

• WSI Billet Engine Girdle
• WSI Closed Deck Engine Block Service
• WSRD Ultimate - Big Pin Piston Set
• WSRD Ultimate - Big Pin Connecting Rod Set
• WSRD Ultimate Copper Head Gasket & O-Ring Service
• WSRD Ultimate Head Stud Set
• WSRD Crankshaft Balance Service
• WSRD Terminator Main Stud Set
• WSRD Ghost Billet PTO Cover (Includes new PTO Bearing and Seal)
• New OEM BRP Connecting Rod Bearings
• New OEM BRP Main Bearings
• New OEM BRP Thrust Washers
• New OEM BRP Oil Sump Rotor Assemblies
• WSI Engine Block Bore & Hone Service
• WSI Engine Block Main Bore & Hone Service
• WSRD Vapor Hone Cleaning Service
• WSI Block Decking Service
• WSRD Short Block Assembly Service

WSRD V4 CNC Ported Cylinder Head Package (V4 Ported Combustion Chamber)

• WSRD V4 CNC Cylinder Head Porting
• WSRD +1mm Intake Valves - 30mm
• WSRD +1mm Exhaust Valves - 26mm
• WSRD Solid Bucket Valve Spring Kit - Includes Titanium Retainers
• WSI Cylinder Head Decking Service
• WSI Cylinder Head Valve Job Service
• WSRD Vapor Hone Cleaning Service
• WSRD Cylinder Head Assembly Service
• WSRD Solid Bucket Conversion Configuration/Assembly
• Your Choice of Camshaft (Additional Cost)

WSRD Long Block Engine Assembly includes the following;

• New OEM BRP Timing Chain

• New OEM BRP Timing Chain Guide Set

• New OEM BRP Timing Chain Tensioner & Spring
• New OEM BRP Engine Gasket Set
• WSRD Long Block Assembly Service

~ WSRD V4 Closed Deck - Billet Girdle Long Block:

• Please supply your complete long block assembly. We find that it is easier to ship these packages without the dipstick side cover and dipstick tube as these are often damaged in shipping. Otherwise, WSRD does request a complete engine for assembly simplicity. If there are any items that are missing, these will be noted. If the missing items are a requirement for assembly, the client will be contacted.

All WSRD Long Block Packages REQUIRE the above listed engine core(s) to be received from the end user shipped to the WSRD facility address also listed above. Once the client cores arrive at WSRD's facility they will go through a teardown and inspection process. Once this is completed the client will be communicated with on any additional services, or hard parts that may be required at an additional cost. Once these things have been communicated with the end user, and the final invoice or final invoice changes have been approved, WSRD will continue with the assembly process and published lead-time(s). If you have any questions on this process please call WSRD directly; 269.415.0040 - extension 1 for the Sales Department.
