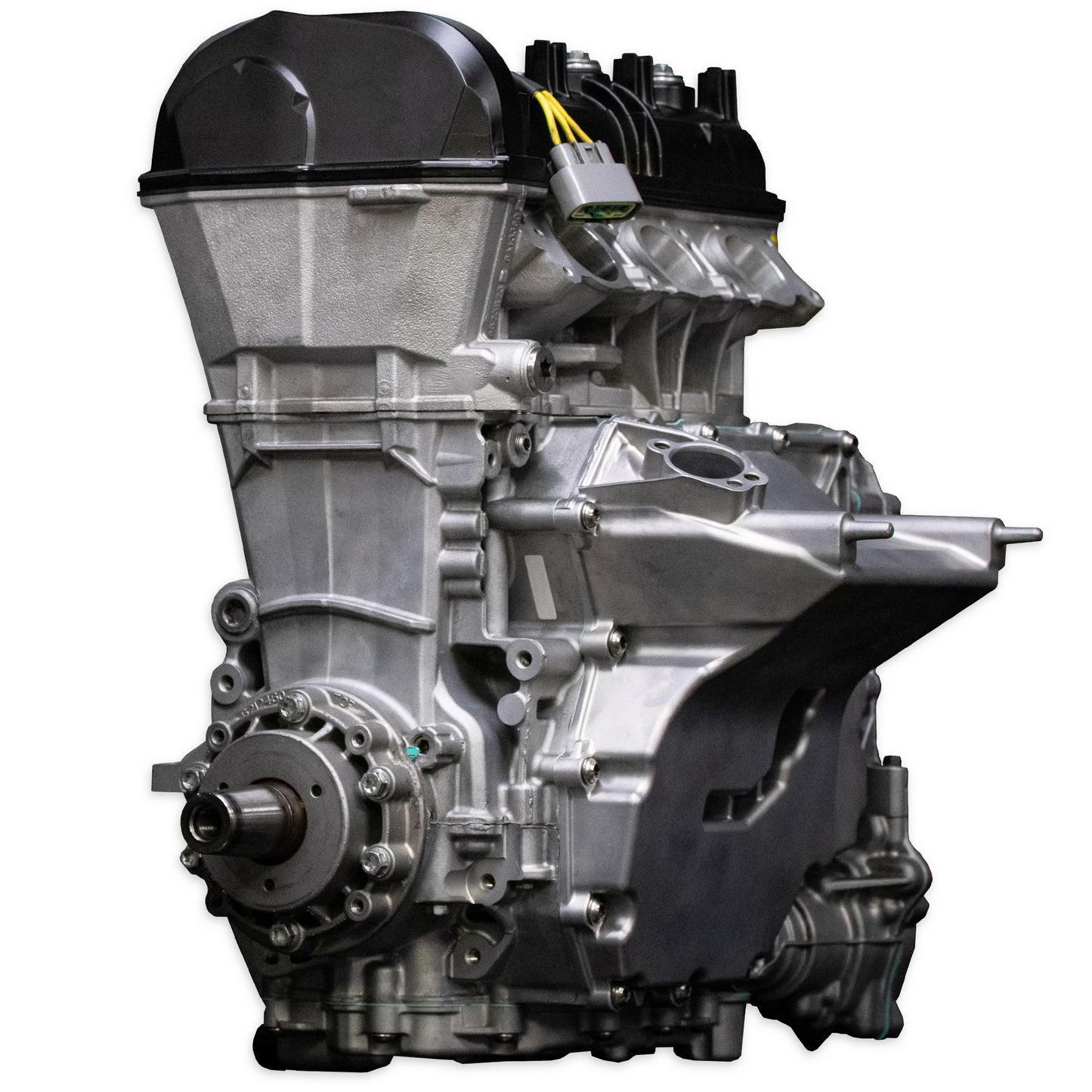

WSRD V1 Long Block Assembly Engine Package | Can-Am X3 & Ski-Doo (Rated to 400HP)

WSRD V1 Long Block Assembly Engine Package | Can-Am X3 & Ski-Doo (Rated to 400HP)

Regular price $4,389.00 USD
Regular price Sale price $4,389.00 USD
Sale Sold out
Shipping calculated at checkout.
Long Block Package Options
Camshaft Option(s)
Service Bundle(s)
The complete Long Block Assembly solutions! All Long Block Assemblies are built around a customer supplied engine core. The processes included for a complete assembly are built from oil sump to valve cover and stator cover as drop in, ready to install long blocks.
Please ship your long block core to the following address:
Whalen's Speed R&D - 161 Commercial Avenue, Paw Paw, MI 49079

What's Included?
WSRD V1 Short Block Package (WSRD Terminator Piston - Client Supplied Connecting Rod)

  • WSRD Terminator Piston Set
  • WSRD Terminator Head Gasket
  • WSRD Terminator Head Stud Set
  • New OEM BRP Connecting Rod Bolts
  • New OEM BRP Connecting Rod Bearings
  • New OEM BRP Main Bearings
  • New OEM BRP Thrust Washers
  • New OEM BRP Main Bolts
  • WSRD Vapor Hone Cleaning Service
  • WSRD Block Decking Service
  • WSRD Short Block Assembly Service

WSRD V1 Cylinder Head Package

  • WSRD STD Intake Valves - 29mm
  • WSRD STD Exhaust Valves - 25mm
  • NEW OEM BRP Valve Springs
  • OEM BRP Valve Stem Seals
  • WSRD Cylinder Head Decking Service
  • WSRD Cylinder Head Valve Job Service
  • WSRD Vapor Hone Cleaning Service
  • WSRD Cylinder Head Assembly Service
  • Your Choice of Camshaft (Additional Cost)

WSRD Long Block Engine Assembly includes the following;

  • New OEM BRP Timing Chain
  • New OEM BRP Timing Chain Guide Set
  • New OEM BRP Timing Chain Tensioner & Spring
  • New OEM BRP Engine Gasket Set
  • WSRD Long Block Assembly Service
Service Bundle 1 - What's Included? (Adds $189)
  • PTO Bearing
  • PTO Seal
  • (2) Water Pump Drive Gears
  • (4) Oil Pump Drive Gears
  • Flywheel to Crankshaft Bolt
  • Flywheel to Crankshaft Washer

Service Bundle 2 - What's Included? (Adds $589)

  • Includes all listed Bundle 1 products above
  • (3) Oil Sump Rotor Assemblies
  • Oil Cooler
  • Water Pump Impeller
  • Small Water Pump Seal
  • Large Water Pump Seal
Engine Cores; (What is required?)
~ WSRD V1 Long Block:
  • Please supply your complete long block assembly. We find that it is easier to ship these packages without the dipstick side cover and dipstick tube as these are often damaged in shipping. Otherwise, WSRD does request a complete engine for assembly simplicity. If there are any items that are missing, these will be noted. If the missing items are a requirement for assembly, the client will be contacted.

All WSRD Long Block Packages REQUIRE the above listed engine core(s) to be received from the end user shipped to the WSRD facility address also listed above. Once the client cores arrive at WSRD's facility they will go through a teardown and inspection process. Once this is completed the client will be communicated with on any additional services, or hard parts that may be required at an additional cost. Once these things have been communicated with the end user, and the final invoice or final invoice changes have been approved, WSRD will continue with the assembly process and published lead-time(s). If you have any questions on this process please call WSRD directly; 269.415.0040 - extension 1 for the Sales Department.
