EVP Paragon P43R-325 Turbo Upgrade System for 2024 Can-Am Maverick X3 Turbo RR
EVP Paragon P43R-325 Turbo Upgrade System for 2024 Can-Am Maverick X3 Turbo RR
DESCRIPTION
Evolution Powersports is never content with standing still. With the best tuning and most features available anywhere for the BRP MG1 vehicles, EVP decided it was time to mate the turbocharger that has won more 43mm class races and holds the world record in ET and MPH to our world-class X3 tuning! For those unfamiliar with the EVP Paragon direct replacement turbochargers – these are no-holds-barred the best turbochargers on the market. What makes the P43R the most dominant turbo system anywhere is the combination of advanced aerodynamics on both the compressor and turbine wheels, ported compressor inlet, and ceramic ball bearing CHRA.
From the outset, our goal was to make it easy and relatively inexpensive to add substantially more power to your 2024 Can-Am X3. The P43R-325 turbo kit utilizes the same injectors and fuel pump as our 2024 X3 big injector packages, so these components are reused. Only head studs, plenum clamp, race intercooler and clutching are needed to complete the kit. This package produces 325 crank horsepower on E85, which is about 125 more than stock. This life-changing power increase is delivered instantaneously thanks to the P43R’s quick spool design. Additionally, the turbo has a ton of overhead to make up to 420+ crank horsepower with an engine build and other supporting components.
P43R FEATURES:
- 43mm (Red) Compressor with 66mm turbine for big turbo flow capabilities
- Includes 265lph Fuel Pump Kit
- Compatible with EVP MG1 Adjustable Launch Control Upgrade, plus Boost and AFR dash readings
- OEM-style exhaust manifold bolts right to the engine with no modifications required (no header or custom exhaust required)
- EVP Race Turbo Compressor Cover with billet insert and anodized compressor wheels
- Ceramic ball bearing CHRA for instant spool, long life, and high durability under extreme boost pressure
- Ceramic-coated exhaust housings retain exhaust energy, which improves turbo response time and minimizes heat output
- Turbosmart wastegate actuator with an easily adjustable turnbuckle
EVP PARAGON P43R-325 TURBO SYSTEM INCLUDES:

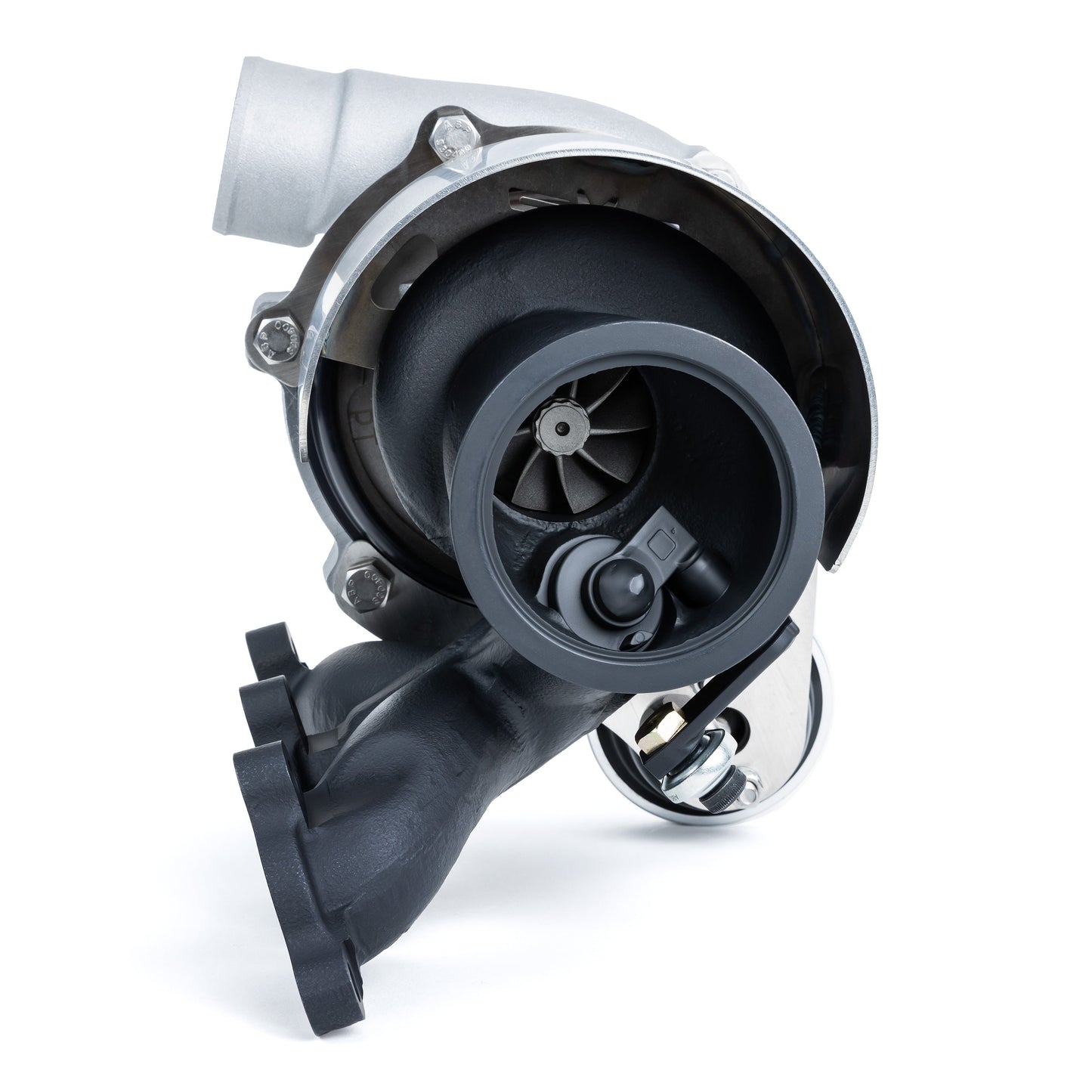

- EVP Paragon 43R Red Turbocharger Assembly for X3 MG1 ECU
- EVP Blow Off Valve 2.0 (BOV) Kit for X3
- EVP Paragon 43R Charge Tube Kit for 2020+ X3
- EVP Paragon High-Flow Intake Kit
- EVP Race Intercooler
- EVP Plenum Reinforcement Brace
- EVP X3 Turbo RR 265lph Fuel Pump Kit
- EVP X3 Paragon Turbocharger Install Kit
- X3 Head Stud Kit, 9MM
- Replacement Spark Plugs
- EVP 1000 Injectors (Set of 3)
- Fuel Injector Adapter Kit (Set of 3)
Do you already own an EVP part from this turbo kit? If so, contact EVP directly to custom build your order today at (715) 247-3862 or at givemepower@evopowersports.com.
EVP DISCLAIMER: CLUTCHING YOUR VEHICLE IS MANDATORY WITH ALL EVP TURBO SYSTEMS. IT IS UP TO THE CUSTOMER TO ENSURE THE VEHICLE IS EQUIPPED WITH THE PROPER CLUTCHING REQUIREMENTS. TO SHOP CLUTCHING FOR YOUR VEHICLE, PLEASE CLICK HERE.
Optional Launch Control Upgrade: Build boost from a standstill and fire off the line like a bullet with EVP's exclusive Paragon MG1 ECU Adjustable Launch Control upgrade! Our industry-leading Launch Control strategy has been completely revamped for the new Paragon kits for better off-the-line acceleration!
DYNO NOTE: Due to the MG1 ECU torque strategy, the boost figures listed represent maximum boost on a hot engine. When intake temps are cooler, the boost will be lower. However, it will make the same power as when the boost is higher. The ECU always tries to make the same power given environmental conditions and it does this by allowing the boost to increase as the intake temperature climbs.
POWER LEVEL: P43R-325 |
||||
---|---|---|---|---|
FUEL TYPE |
Boost PSI |
WHP |
CHP |
AVAILABLE |
stock |
19 |
171 |
208 |
N/A |
91 |
20 |
190 |
232 |
2200 up to 5200 |
109 |
27 |
246 |
300 |
2200 up to 5200 |
E85 |
28 |
264 |
322 |
2200 up to 5200 |
FITMENT
2024 Can-Am Maverick X3 Turbo RR
KIT INCLUDES
- EVP Paragon 43R Red Turbocharger Assembly for X3 MG1 ECU
- EVP Blow Off Valve 2.0 (BOV) Kit for X3
- EVP Paragon 43R Charge Tube Kit for 2020+ X3
- EVP Paragon V-Flow Intake Kit
- EVP Race Intercooler
- EVP Plenum Reinforcement Brace
- EVP X3 Turbo RR 265lph Fuel Pump Kit
- EVP X3 Paragon Turbocharger Install Kit
- X3 Head Stud Kit, 9MM
- Replacement Spark Plugs
- EVP 1000 Injectors (Set of 3)
- Fuel Injector Adapter Kit (Set of 3)
